Particles & audio

Two packages that are extensions rather than parts of the engine. Nothing in flutter3d names a particle or a sound.

Particles #

ParticleSystem is one pool for the whole application, not one per effect. A system per effect is a draw call per effect, and on this engine a pipeline change is the most expensive state change there is.

final particles = ParticleSystem(capacity: 2000);
renderer.renderSteps.addContributor(ParticleContributor(particles));

// once a frame
particles.update(dt);

That is the whole integration. ParticleContributor is a PassContributor, the seam that lets something draw inside an existing pass without the renderer learning what it is.

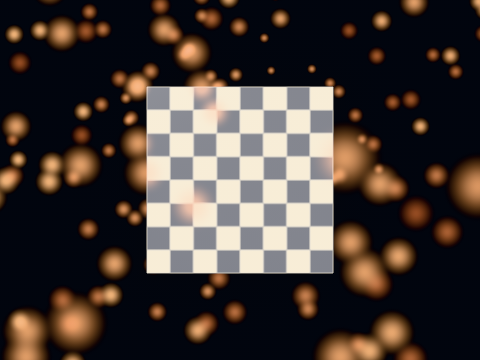

A seeded burst a little over half a second in: spread, drag and gravity bending the paths, colour and size changing over life. particles-burst

Effects are values #

abstract final class Effects {
  static final ParticleEffect dust = ParticleEffect(
    count: 12,
    emitter: const ConeEmitter(speed: Range(0.6, 1.8), halfAngle: 0.96), // 55°, in radians
    lifetime: const Range(0.35, 0.7),
    size: const Range(0.08, 0.2),
    color: Vector4(0.8, 0.78, 0.7, 0.5),
    affectors: <ParticleAffector>[
      ParticleSizeCurve(...),
      ParticleColorGradient(...),
      ParticleSpin(...),
    ],
  );
}

Emitter	Shape
`SphereEmitter`	Outward from a shell, `speed` and `radius` ranges
`ConeEmitter`	A cone about a direction, `halfAngle` in radians
`BoxEmitter`	From inside a box, optionally along an axis
`DriftEmitter`	Slow and spread: smoke, motes

Two ways to emit #

// One-shot: a footstep, an impact, a coin taken.
particles.burst(Effects.dash, at, direction: up);

// Continuous: restated every frame, keyed on who is emitting.
particles.emit(fire, Effects.flame, origin, perSecond: 34.0, direction: up);

A continuous rate that is not restated goes out, by design. A torch that was destroyed stops smoking because nobody told it to keep going, and no code had to remember to stop it.

advance sub-steps internally with a ceiling, because a debugger pause hands it a delta of several seconds and catching all of it up takes longer than the stall did.

Lights measured from the particles #

A fire is its particles, so the light it casts is measured from them rather than produced by a second wobble running alongside.

final class TorchFire with LightEmitter {
  // ParticleGlow accumulates every live particle's contribution during the
  // step and hands back a smoothed intensity.
}

Two generators of one quantity disagree eventually, and the disagreement looks like a flame burning brightly while the light it casts has gone out. ParticleGlow removes the second generator instead of trying to keep them in step.

Mesh particles and flipbooks #

MeshParticleContributor draws instanced meshes instead of quads, for debris and sparks with volume. Flipbook walks a sprite sheet over a particle's lifetime.

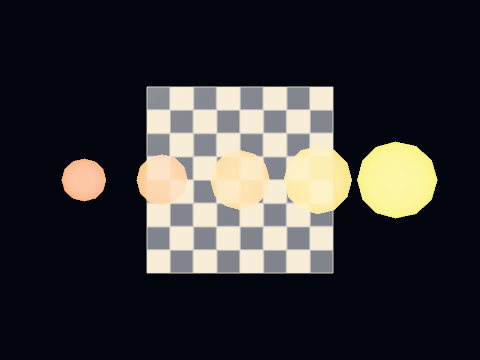

Five spheres in a row, one instanced draw, sizes ascending so a backend that drew instance zero five times would be caught. particles-mesh

The particle shaders live in flutter3d_shaders, not here. That package is already the shared GLSL every backend compiles from (Impeller into a bundle, WebGL by translation, the CPU backend as Dart transcriptions), and keeping particle.vert there while the simulation lives here is what that package exists for.

Audio #

The spatialisation (attenuation, panning, occlusion and voice limiting) is computed in Dart. Making noise is a backend's job.

AudioScene audio = AudioScene(backend: SilentBackend());
final ears = AudioListener();

// SoLoud arrives asynchronously and must not hold up the first frame.
final backend = SoLoudBackend();
try {
  await backend.open();
  audio = AudioScene(backend: backend, mixer: audio.mixer);
  await audio.preload(Sounds.all);
} catch (error) {
  debugPrint('audio: could not start SoLoud: $error');   // keep playing, silently
}

Starting with SilentBackend and swapping has a concrete reason. A machine with no audio device, or a CI runner, keeps the silent backend and plays the game. Awaiting the device before the first frame instead would make a missing sound card the difference between playing and staring at a spinner.

Sounds are definitions #

abstract final class Sounds {
  static const SoundDef coin = SoundDef(
    name: 'coin',
    asset: 'assets/sounds/coin.ogg',
    gain: 0.8,
    bus: AudioBus.sfx,
    rate: 1.0,
    rateVariance: 0.08,   // so forty coins are not one coin forty times
    priority: 2,
    maxInstances: 4,
    attenuation: InverseRolloff(reference: 2.0, maximum: 40.0),
  );
}

InverseRolloff, LinearRolloff, ExponentialRolloff and NoAttenuation are the four curves; reference is the distance at which a sound is at full gain and maximum is where it stops being audible at all.

Playing and updating #

// Fire and forget, at a world position.
audio.play(Sounds.coin, where);

// Held for as long as it should sound, stopped when it should not.
final voice = audio.play(Sounds.stoneGrinding, doorOrigin);
// ...
voice.stop();

// Once a frame, after the camera has moved.
ears.aimAlong(camera.eye, camera.target - camera.eye);
audio.update(ears);

aimAt(position, yaw) reads an angle the way a first-person camera does. A follow camera is not one, so it uses aimAlong with its own forward vector. Passing a yaw would put the ears where the player is facing, when they belong where the camera is looking.

Voice limiting and occlusion #

maxVoices caps how many sound at once. When more want to play, priority, distance and maxInstances decide, so forty coins in a heap do not drown a door opening behind you.

Occlusion is a callback, because what counts as blocking is a game's answer. The bridge's SoundOcclusion is the answer a brush level gives: it walks the ray from the source to the ear through the collision world and lets every obstacle it meets take half, down to a floor that keeps a distant torch from switching off as the player rounds a corner.

final occlusion = SoundOcclusion(collision, perObstacle: 0.5, maxObstacles: 4, floor: 0.06);
final audio = AudioScene(backend: backend, occlusion: occlusion.between);

A wall makes a sound quieter and duller, and both come from that one number. The share that got through is the gain; one minus it goes beside it to the backend as a muffle, which SoLoudBackend turns into a low-pass cutoff per voice, geometric between 16 kHz open and 600 Hz through a wall, because hearing is geometric. Thickness is not measured, so every wall counts once however thick, and the answer is pure, so a replay sounds the way the run did.

The dungeon had a wall test since its first commit and it was yes-or-no: a torch behind a door and a torch three rooms away were the same torch.

Buses #

audio.mixer.setVolume(AudioBus.master, 0.9);
audio.mixer.setVolume(AudioBus.music, 0.4);
audio.mixer.setVolume(AudioBus.sfx, 1.0);

Mixer.fromJson / toJson is what a settings file stores.

Next #

Tutorial: first scene: both of these wired into a real application
Platformer tutorial, where every event on the page becomes a sound and a burst
